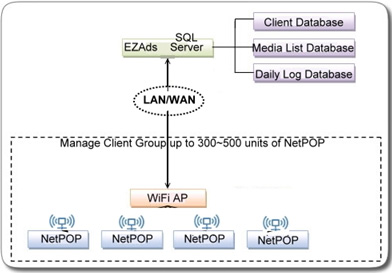

EZAdsR Manager is installed and operated with Windows SQL Sever which manages NetPOPR by client-server infrastructure as the following diagram:
NetPOPR is registered and connected to EZAdsR Manager Server at setting time after ID verification; Then NetPOPR starts to download the latest version, if any.
NetPOPR produces a daily playback list and report the viewer’s hit details of Main Manu’s channel button/item button/sub-item button at [Inetractive Button Zone] and [Interactive Service Zone]. This record is delivered to EZAdsR Manager Server to report after ID verification.
One EZAdsR Manager Server can manage NetPOPR up to 500 units.
NetPOPR presents the Scheduling Management
Support Bar Code scan function to present the products/services interactive information from data base(option)
Account grade authorization management
All daily log of NetPOPR can be summarized and report. The main record includes the logs of daily operation, on/off, connection, playback. The logs can be done by backup and cancelled by auto or manual.
NetPOPR can be divided into different group and managed by EZAdsR Manager Server.
Advertisement content is facilitated as Preview and Snapshot for being edited easily purpose.
Preview play list schedules
An alert announcement for auction, promotion and discount sale can be preloaded at an emergency zone.
RSS/Ticker static and dynamic text scroll configuration
Support HTML, URL
Screen zone configuration
When Error information or device breakdown status is detected, an email or SMS notification is delivered.
Preload play list
Restore playback
Selection of screen size 4:3 or 16:9 as well as landscape or portrait
EZAds ® Manager Features

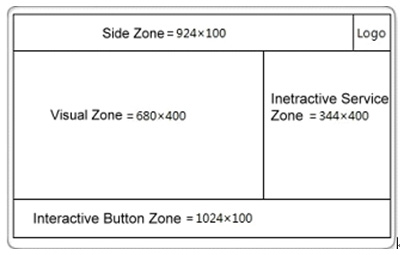

Configurable multifunction Screen Zone as following diagram

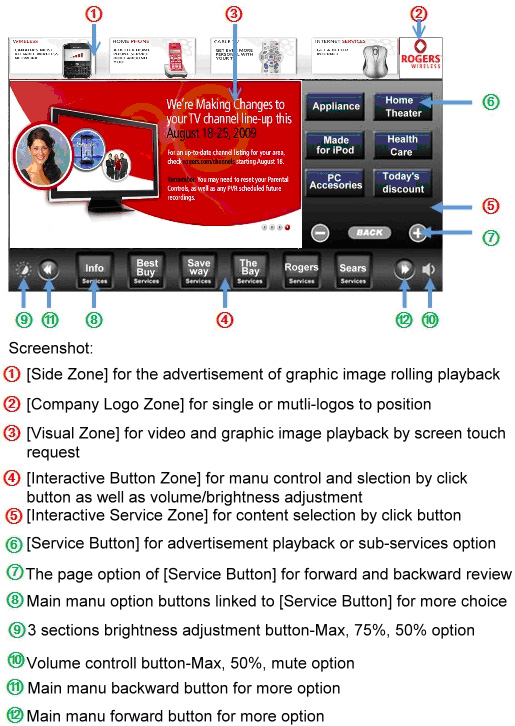

Screen zone is configured three zones as [1] [Visual Zone] for video and image [2] [Side Zone] for product/services advertisement [3] Two Interactive Zone for all selectable programs which is displayed at [Visual Zone]. [Interactive Button Zone] presents Channel Buttons to step to the next selection of Item Button/Sub-Item which is shown at [Interactive Service Zone] for services selection buttons. The following zone diagram and screenshot example are based on 10.2” LCD.
The daily log records the following information and store in EZAdsR Manager Server to report.
-On/off timing and its frequency
-The idle time, playback time and frequency of advertisement
The date/timing/frequency of each services button hit are recorded in daily log and stored in EZAdsR Manager Server to report.
Provide the poll interface for the investigation of product/services events and record the result in the log to store in EZAdsR Manager Server to report.
Partition two data storage zones. The current playback content is stored in [A] zone. The pending download file is stored in [B] zone. Upon download is finished, the new content is uploaded to the new zone and changes the latest play list accordingly.
NetPOPR can be in playback mode While NetPOPR downloads the new content.
Support the partial upload and download restored function and continues the download from the intermittent point when the situation is available.
Advertisement content is facilitated as Preview and Snapshot for being edited easily purpose.
Preview play list schedules
An alert announcement for auction, promotion and discount sale can be preloaded at an emergency zone.
RSS/Ticker static and dynamic text scroll configuration
Support HTML, URL
Screen zone configuration
When Error information or device breakdown status is detected, an email or SMS notification is delivered.
Preload play list
Restore playback
Selection of screen size 4:3 or 16:9 as well as landscape or portrait
EZAds Manager ®
